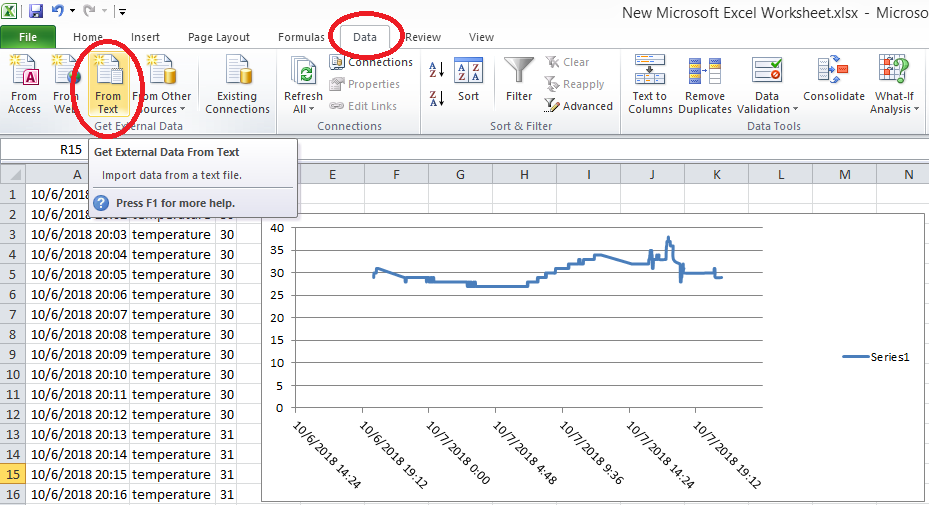

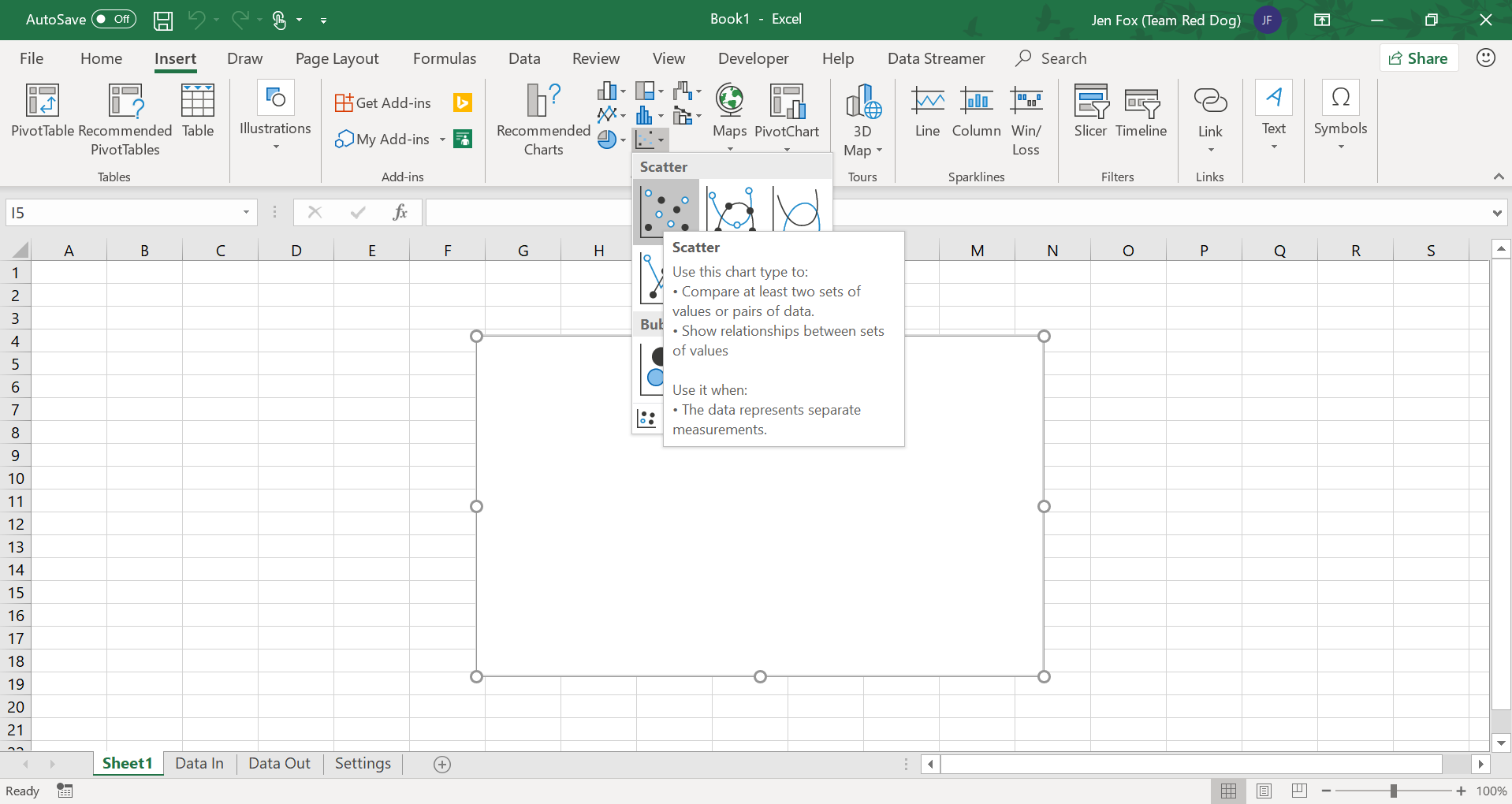

Arduino Data Acquisition Into Excel Full Curriculum And If you want the actual time to be on the x-axis, select the timestamp in Column A on the Data In sheet for the x-axis values in your Scatter Plot. To use a command, type the equals () sign, the command name, and an open parenthesis, then select the data youre analyzing and close the parentheses. There are lots of built-in commands like average, maximum, and minimum. Youcan also do calculations and comparisons in Excel To write a formula, click on an empty cell and type an equals sign (), then the calculation you want to do. Next, youll want to display your data on the y-axis, with time on the x-axis. When you click Stop Record, you will be prompted to select a file name and location.Īdd a Plot of your data Do some data analysis. To save data into a text (.CSV) file, click the Record Data button. Settings: Change basic settings for Data Streamer, including the amount of live data and number of data columns.īy default we only get 15 rows of data, but you can gather up to 500 rows of live data (limit is due to Excel bandwidth - theres a lot happening in the background). This will create 3 new sheets: Data In: Live data is printed on this sheet.ĭata Out: Send data andor commands to the Arduino board using this sheet. Open Excel and navigate to the Data Streamer tab. Note: if you use the sample code, be sure to connect your sensor to Arduino Analog Pin A0.
Write your own or use the sample code in the attachments section. Arduino Data Acquisition Into Excel Code In The Write and flash a sketch that reads in the sensor and prints the value to the Serial Monitor with a new line at the end. Here are some examples: Electroconductivity Sensor, Pressure Sensor, Electromagnetic Sensor.
